Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Brand Name : Hoan

Model Number : JGX-0160D-4.8A

Certification : ISO9001:2015

Place of Origin : Shaanxi, China

MOQ : 4 piences

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 4,pience,7

Delivery Time : 7

Product Keywords : wire vibration damper

Mounting Orientation : Vertical

Relative Product : Backdraft Damper

Load Range : 3.5-2000KG

Length : 215.9mm

Wire Rope Length : 79.5mm

Drawing Format : DWG and PDF

Machinery Test Report : Not Available

Mounting Type : Threaded

Characteristic : wide working frequency, long life span

Load Capacity : 50kg

Showroom Location : None

Core Components : Bearing

Contact Now

JGX-0160 series

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

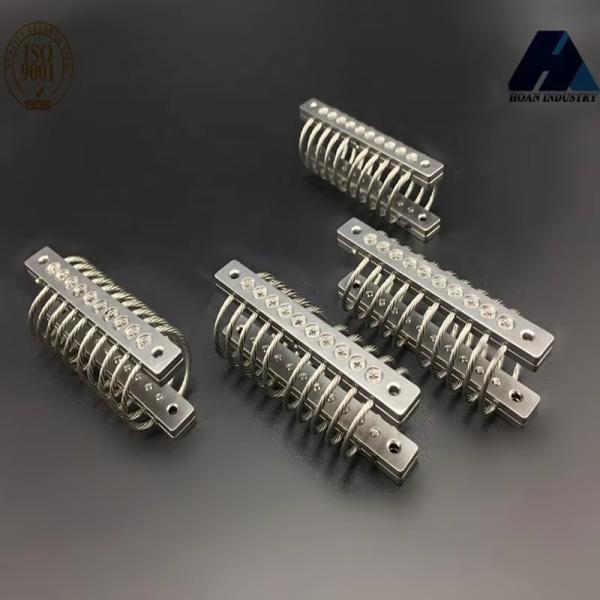

Wire rope shock isolators are comprised of stainless steel stranded cable threaded through aluminum alloy retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope shock isolators are environmentally stable,high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

The JGX-0160D-4.8A wire rope shock isolators is the kind type isolators from the family JGX-0160 series. The stainless steel cables and retaining bars of the JGX-0160D-4.8A provides amazing vibration isolation any time in use.

JGX-0160D-4.8A is the new designed 10 loops 1.6mm diameter wire rope shock isolators with max static load of 4.8kg, especially used in the precise instruments for the noise attenuation for both military and industry. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

Nowadays, the JGX-0160 series isolators are used widely in the field of highway transportation, marine, shipborne, navy,photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

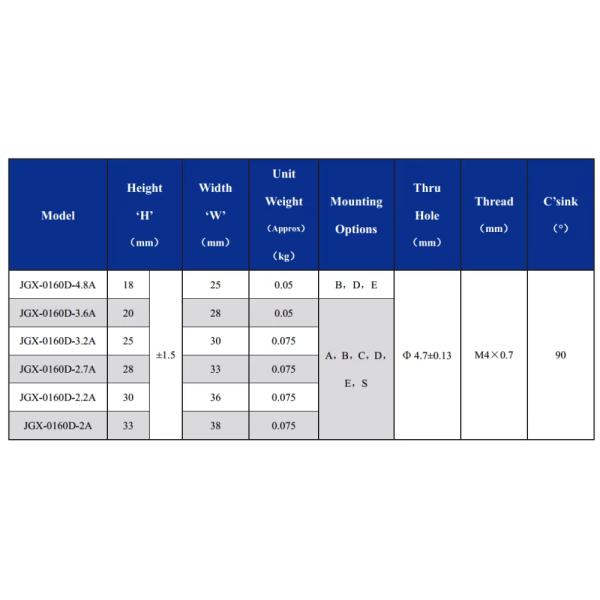

Specificatiom

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

* The material of the mounting splint*

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy mounting cleats *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

Company Profile

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Xi'an Hoan Microwave Co., Ltd. was established in 2005. The company is located in the High-tech Zone of Xi'an. The company covers an area of ​​800 square meters, including 500 square meters of production area and 300 square meters of office area. It is a professional enterprise specializing in the development, production, sales and technical services of civilian electronic components, cable assemblies, high-precision electrical connectors, vibration isolators, microwave antennas, waterproof breathable valves and other products.Our products are widely used in electronic equipment, aviation communications, postal and telecommunications, civilian electrical appliances, instrumentation and other technical fields. The products are sold all over the country. At present, there are more than 100 civilian customers.

Hoan has obtained ISO9001:2005 quality management system certification and GJB equipment quality management system certification.Since its establishment, the company has strictly organized and implemented operations in accordance with the standard requirements of the quality management system. The product quality is stable and reliable. There have been no customer complaints about quality and leakage accidents, and no production safety accidents.

HOAN primarily develops vibration isolators, LC filters, connectors, and microwave communication antennas based on GJB standards. We also design custom products to meet specific customer requirements. Hundreds of high-demand clients have established long-term partnerships with us. In addition to independent product development, HOAN actively fosters collaboration between industry,academia, and research institutions.

Customer Photos

Corrosion Resistant Stainless Steel JGX-0160D-4.8A Wire Rope Vibration Isolator for Precise Instruments

Our Advantages

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays.
